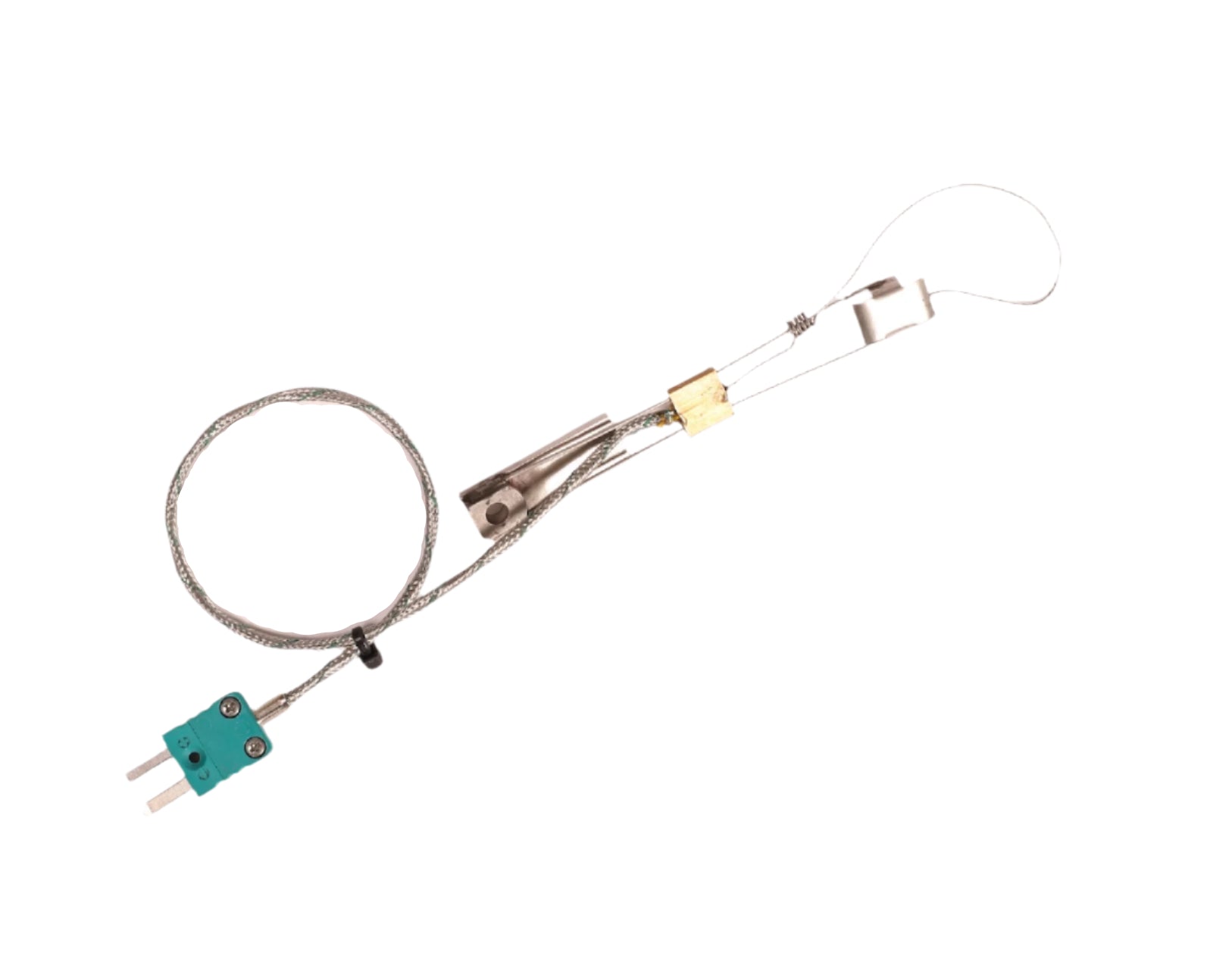

Brake Disc Thermocouple with Miniature Connector

This specialised thermocouple is designed for accurate temperature measurement on rotating brake discs and similar rubbing surfaces. Featuring a unique spring-loaded design, durable construction, and a miniature connector, this sensor provides reliable temperature readings in dynamic testing environments.

Key Features

• Rubbing Contact Design: The thermocouple features a spring-loaded design with the exposed tip maintained against the measuring surface.
• Exposed Hot Junction: Small thermocouple exposed at the contact point to get accurate temperature measurements.
• Durable Stainless Steel Construction: Built with stainless steel to withstand the stresses of brake testing.
• Braided Cable: The stainless steel braided cable offers high flexibility and resistance to abrasion, ensuring long-lasting performance even with continuous movement.
• Miniature Connector: The teal miniature connector (likely K-type) allows for quick and easy connection and disconnection to data acquisition systems.
• High Response Time: Designed for rapid temperature response to capture dynamic temperature changes during braking events.
• Spring-Loaded Mechanism: The spring ensures consistent contact with the brake disc surface, minimising measurement errors.

Applications

• Brake Disc Temperature Monitoring
• Friction Testing
• Wear Testing
• Materials Testing
• Automotive Research and Development

Industries

• Automotive
• Braking Systems
• Materials Science
• Research and Development

This brake disc rubbing thermocouple is an essential tool for brake system development and testing. Its robust construction, spring-loaded design, and rapid response time make it ideal for capturing accurate temperature data on rotating brake discs in demanding testing environments. The miniature connector facilitates quick and easy integration with data acquisition systems.
