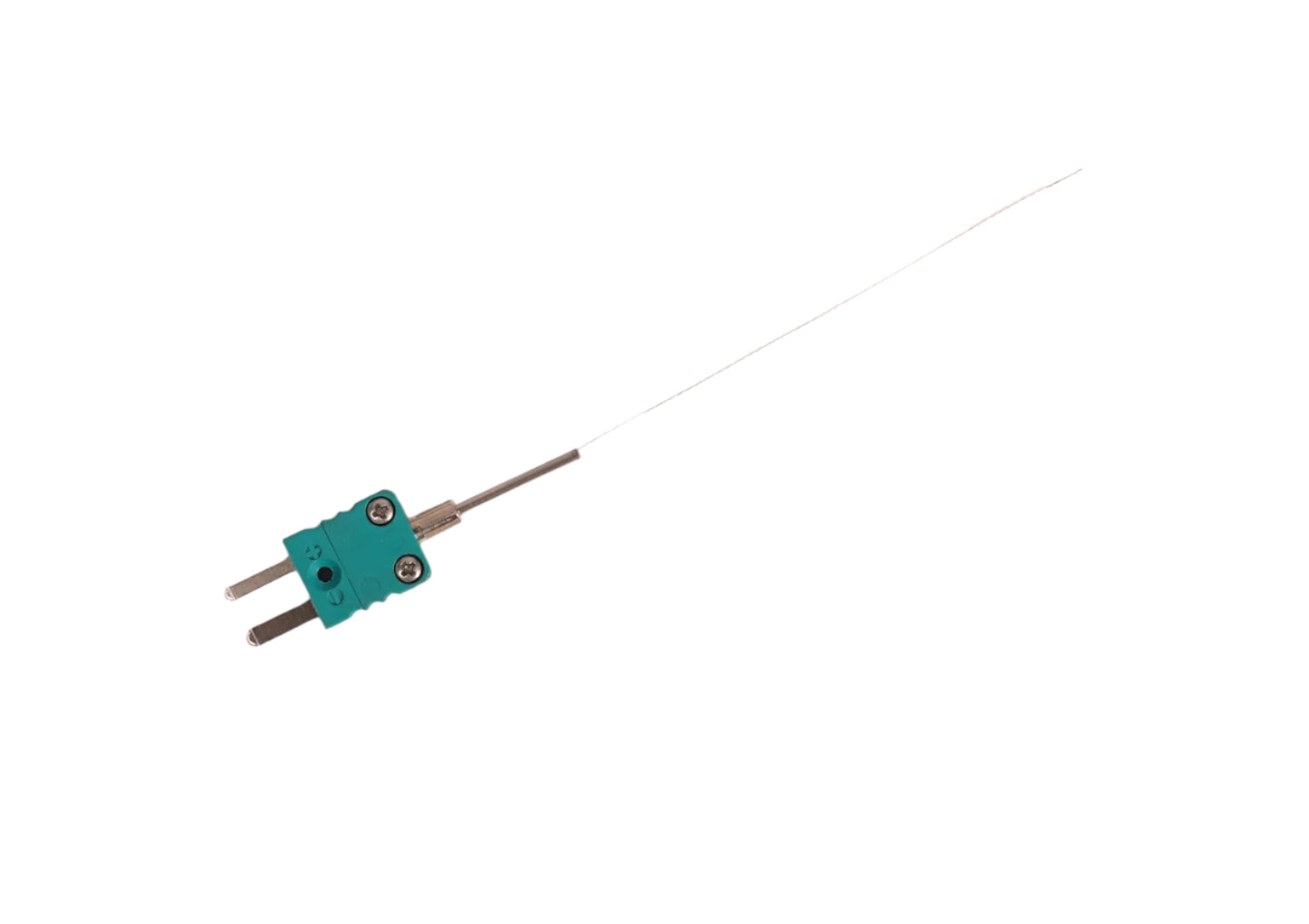

Ultra-miniature mineral insulated thermocouple

This ultra-miniature mineral-insulated (MI) thermocouple is designed for precise temperature measurement in extremely tight spaces and demanding environments. Featuring a tiny diameter, flexible MI sheath, and miniature plug, this sensor provides accurate readings with easy connectivity.

Key Features

• Ultra-Miniature Size: The incredibly small diameter allows access to very confined areas, enabling temperature measurement where larger sensors cannot fit.
• Mineral-Insulated (MI) Construction: The thermocouple wires are embedded in tightly packed mineral insulation (typically MgO) within a metal sheath, providing excellent thermal conductivity, electrical isolation, and mechanical protection.
• Type K Thermocouple: The green miniature plug indicates a Type K thermocouple.
• Stainless Steel Sheath: The stainless steel sheath offers good resistance to corrosion, oxidation, and physical damage, making it suitable for various applications.
• Miniature Plug: The miniature plug allows for quick and easy connection and disconnection to instrumentation or control systems.
• Flexible Sheath: The MI sheath can be bent and formed to fit specific application requirements without compromising performance.
• Fast Response Time: The small size and exposed junction (likely) allow for a fast thermal response.
• Wide Temperature Range: Suitable for a wide range of process temperatures (depending on the thermocouple and sheath material).

Applications

• Microelectronics
• Semiconductor Manufacturing
• Medical Devices
• Small Engine Testing
• Research and Development
• Battery Testing
• 3D Printing

Benefits

• Access to Tight Spaces: Ultra-miniature size allows measurement in previously inaccessible areas.
• Accurate Measurement: Provides reliable temperature readings.
• Durable Construction: MI construction and stainless steel sheath ensure robust performance.
• Easy Connection: Miniature plug allows for quick and easy connections.
• Flexible Use: The flexible sheath can be formed to fit specific applications.

This ultra-miniature MI thermocouple is the perfect solution for temperature sensing in applications where size and durability are critical. Its rugged construction, precise measurement capabilities, and easy connectivity make it ideal for demanding research and industrial environments.
